SolarEast R32 SGready Electric Heating System Underfloor Heating Roomheater Inverter EVI

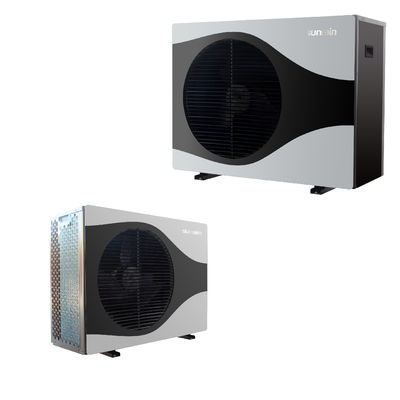

SolarEast heat pump absorbs heat from the outside air.
In the summer, it pumps heat outside, while in the winter, it does the opposite.
Because they convert energy to heat and/or cool your air more efficiently
than traditional gas-fired units, they produce fewer carbon emissions.
SolarEast heat pumps have a longer lifespan
than combustion-based systems, such as furnaces.
If properly maintained, they can survive anywhere from 10 to 20 years.
Most heat pumps can last about 15 years, but regular maintenance can extend their life.
While heat pumps have a huge upfront cost, you end up saving a ton of money on your energy bills.
In fact, you can save thousands of dollars over the entire life of your heat pump.
| ✔R32 environmental refrigerant | ✔Energy class: A+++ |
| ✔-25℃ inverter EVI | ✔Power Detection Function |
| ✔5-Inch TFT True Color Screen | ✔5G/2.4G Compatible WIFI Module |
| ✔Linkage Control with PV Function | ✔Outlet water temperature up to 60℃ |
| ✔Dual Temperature Zone | ✔Reserved RS485 Communication Port |
| ✔Full DC inverter Panasonic compressor and fan motor | |
| * Model | BLN-006TB1 | |
|
Power supply
|
V/Ph/Hz
|
220~240/1/50
|
|
Nominal Heating (Max) (A7/6℃,W30/35℃)
|
||
|
Heating capacity
|
kW
|
2.92 ~ 9.10
|
|
Power input
|
kW
|
0.61 ~ 2.11
|
|
Current input
|
A |
2.80 ~ 9.25
|
|
COP
|
W/W
|
4.31 ~ 5.66
|
|
Nominal Heating (Max) (A7/6℃,W47/55℃)
|
||
|
Heating capacity
|
kW
|
2.99~8.16
|
|
Power input
|
kW
|
1.03~2.92
|
|
Current input
|
A |
4.57~12.79
|
|
COP
|
W/W
|
2.79 ~ 3.46
|
|
Nominal Cooling (Max) (A35/24℃,W12/7℃)
|
||
|
Cooling capacity
|
kW
|
1.38~5.70
|
|
Power input
|
kW
|
0.67~2.44
|
|
Current input
|
A |
3.06~10.27
|
|
ERP level(outlet water temp. at 35℃)
|
/ |
A+++
|
|
Max. input power
|
kW
|
3.5
|
|
Max. input current
|
A |
15.0
|
|
Refrigerant Type / Charge / GWP
|
.../kg |
R290 / 0.55 / 3
|
|
Rated water flow
|
m³/h | 1.00 |
|
Fan quantity
|
/ |
1
|
|
Fan motor type
|
/ |
DC inverter
|
|
Compressor
|
/ | DC inverter |
|
Circulating pump
|
/ |
Inverter type / Built-in
|
|
IP class
|
/ | IPX 4 |
|
Sound pressure at 1m distance
|
dB(A)
|
46 |
|
Max outlet water temperature
|
°C
|
75 |
|
Water piping connections
|
/ | G1 |
|
Water Pressure drop
|
kPa | 20 |
|
Operating temperature range (heating mode)
|
°C
|
-25~45 |
|
Operating temperature range (cooling mode)
|
°C
|
16~45 |
|
Unpacked dimensions (L*D*H)
|
mm |
1187*418*805
|
|
Packed dimensions (L*D*H)
|
mm |
1217*463*920
|
|
UnPacked weight
|
kg | 110 |
|
Packed weight
|
kg | 115 |
SoalrEast is one of the biggest suppliers in CHINA. With more than 10 years experience in world trade, we can provide the best prices, the highest quality, and superior service. We inspect our products before shipping them out and provide a 2-year warranty for all products. We promise to give you a full refund if the products are not as described.Let's look at the case of SolarEast!
