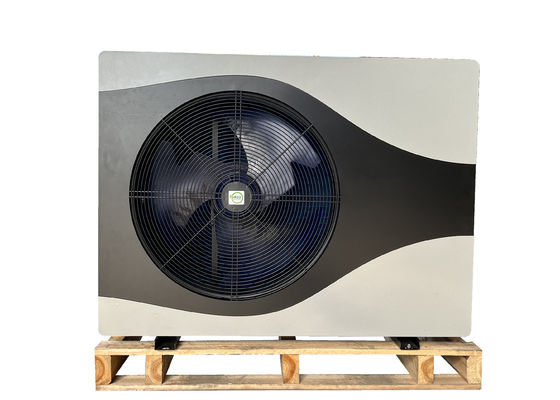

R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use

Certification
China Guangdong Sunrain Air Source Energy Co., Ltd. certification
China Guangdong Sunrain Air Source Energy Co., Ltd. certification
I'm Online Chat Now

R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use

R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use
R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use

Large Image :  R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use

Product Details:
Place of Origin: CHINA
Brand Name: SUNRAIN
Certification: TUV
Model Number: BLN-010TB1
Payment & Shipping Terms:
Supply Ability: 5000 Unit/Units per Month
Detailed Product Description
Power Source: Electric Installation: Freestanding
Refrigerant: R32 Warranty: 2 Years
Feature: High Efficiency Controller: WIFI
EVI: -30℃
High Light:

R32 Heating And Cooling Heat Pump

,

10KW Heating And Cooling Heat Pump

,

10kw air source heat pump

R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use

Model:   BLN-010TB1
Power Supply V/Ph/Hz 220~240/1/50
Nominal Heating (Max) (A7/6℃, W30/35℃) Heating Capacity kW 10.58 (4.20-12.20)
Power Input kW 2.29
COP W/W 4.62
Nominal Heating (Max) (A7/6℃, W47/55℃) Heating Capacity kW 9.47
Power Input kW 3.09
COP W/W 3.06
Nominal Cooling (Max) (A35/24℃, W12/7℃) Cooling Capacity kW 8.34
Power Input kW 2.66
EER W/W 3.14
ERP Level(Outlet water temp. at 35℃) / A+++
ERP Level(Outlet water temp. at 55℃) / A++
Rated input power kW 3.83
Rated input current A 17.00
Refrigerant / Weight   / R32
Rated water flow m3/h 1.75
Fan quantity / 1
Fan motor type / DC inverter
Compressor / Panasonic / DC inverter / Rotary / EVI
Circulating pump / Inverter type / Built-in
IP Class / IPX4
Sound pressure at 1m distance dB(A) 51
Max outlet water temperature °C 60
Water piping connections / DN 25 (1")
Pressure drop at rating water flow kPa 27
Operating temperature range (Heating mode) °C -30~45
Operating temperature range (Cooing mode) °C 16~45
Unpacked Dimensions ( L×D×H ) mm 1100×445×850
Packed Dimensions ( L×D×H ) mm 1150×580×1000
UnPacked Weight kg 107
Packed Weight kg 119





R32 EVI FULL DC INVERTER HEAT PUMP



SUNRAIN R32 heat pump adopts Panasonic DC inverter Compressor and DC inverter fan. With this technology, users can enjoy a maximum level of comfort at the lowest costs. Freestanding features In the market is to save space and money. For sure. The R32 EVI Full DC Inverter heat pump will be the future trend.



R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use 0

Eco-friendly R32



R32 is environmentally friendly and has no combustion or exhaust gas emissions.

                                    R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use 1

































Intelligent Defrosting Technology



SUNRAIN intelligent defrost control mode calculates the temperature difference and the accumulated working time of the compressor to judge the defrost condition of the evaporator. When the defrost condition is met, it will automatically enter the defrost mode.



R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use 2



R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use 3





Three in one function



Thanks to the integrated heating/cooling/Domestic function in the heat pump, the R32 HP is able to deliver the right temperature with great power. It gives users more options to get the perfect results they want, regardless of extreme cold/hot climates.



R32 10kw Air Source Monoblock Heating And Cooling Heat Pump Residential Use 4
