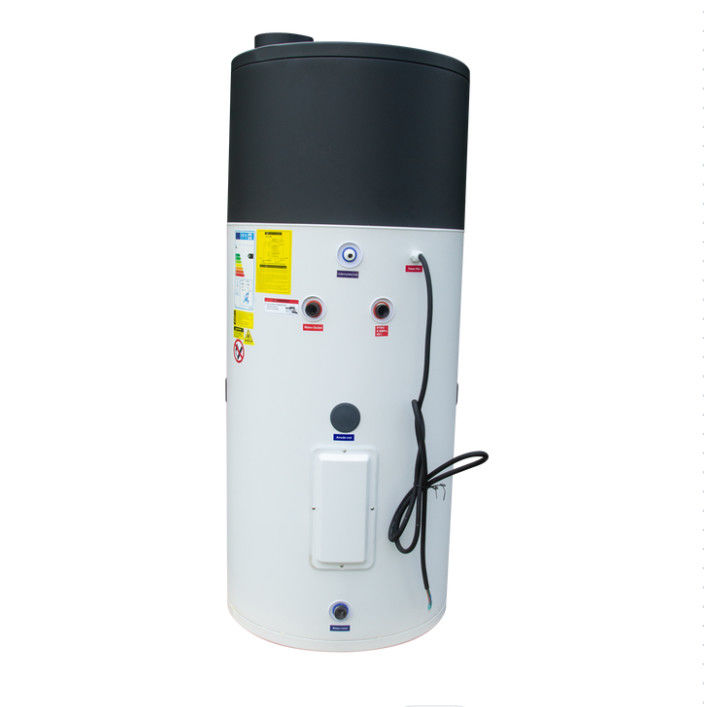

10KW Heat Pump Water Heater For Radiant Heat R290 Panasonic Compressor
R290
| Model | YT-200TA2 | YT-300TB2 | YT-250TF2 | |
| Power Supply | V/Ph/Hz | 220~240V /1 /50Hz | ||
| Rate Heating Capactiy | kW | 2.4 | 2.9 | |
| Refrigerant | / | R134a | ||
| Tapping Cycle | / | L | XL | xl |
| Engergy Effcient Class | / | A+ | A++ | |
| Engergy Effcient ŋwh | % | 154.5 | 168.7 | |
| **COP (EN16147) | / | 3.75 | 3.81 | |
| Tank Capacity | L | 200 | 300 | 250 |
| Air Flow | m³/h | 450.0 | ||
| Air Discharge | / | Vertical | ||
| Air Duct Diameter | mm | φ150 | ||
| Auxiliary electric heater | kW | 2 | ||
| Default water temperature | ℃ | 55 | ||
| Working water temperature | ℃ | -7~43 | ||
| Unpacked Dimensions ( L×D×H ) | mm | Φ1620*1750 | Φ1620*1937 | 600*600*1830 |
| Packed Dimensions ( L×D×H ) | mm | 700*700*1930 | 700*700*2050 | 700*700*2-50 |
| UnPacked Weight | kg | 95 | 130 | 136 |
| Packed Weight | kg | 113 | 145 | 155 |
| Noise | dB(A) | 46 | ||
R134a
| Model | YT-200TA1 | YT-300TB1 | YT-250TF1 | |
| Power Supply | V/Ph/Hz | 220~240V /1 /50Hz | ||
| Rate Heating Capactiy | kW | 2.4 | 2.9 | |
| Refrigerant | / | R134a | ||
| Tapping Cycle | / | L | XL | XL |
| Engergy Effcient Class | / | A+ | A++ | |
| Engergy Effcient ŋwh | % | 148.9 | 142.0 | |
| **COP (EN16147) | / | 3.48 | 3.52 | |
| Tank Capacity | L | 200 | 300 | 250 |
| Air Flow | m³/h | 450.0 | ||
| Air Discharge | / | Vertical | ||
| Air Duct Diameter | mm | φ150 | ||
| Auxiliary electric heater | kW | 2 | ||
| Default water temperature | ℃ | 55 | ||
| Working water temperature | ℃ | -7~43 | ||
| Unpacked Dimensions ( L×D×H ) | mm | Φ1620*1750 | Φ1620*1937 | 600*600*1830 |
| Packed Dimensions ( L×D×H ) | mm | 700*700*1930 | 700*700*2050 | 700*700*2-50 |
| UnPacked Weight | kg | 95 | 130 | 136 |
| Packed Weight | kg | 113 | 145 | 155 |
| Noise | dB(A) | 46 | ||
Installing, operating, and maintaining an air source heat pump in your home can keep your home warm all year round.
Installing a SolarEast air-source heat pump can reduce your electricity use by 25 to 50 percent! Taking advantage of geothermal cooling is a great way to avoid those painful spikes in your utility bills over the upcoming hot summer months.
Three different water tank sizes have been devised for the All-In-One R290 or R134a to accommodate families of various sizes. There are three different sizes of modules available: 100L, 300L, and 250L. Users can pick whichever one best suits their families. These three models are all CE, ErP, WaterTank, and StandMark certified.
The All-In-One series can compute and analyze its operating conditions automatically while the water is being heated, and it can then change the power input to get the best COP.The All-In-One series heat pump water heater may reach a high COP of up to 3.81 under the condition of (EN16147), which can greatly cut energy consumption and save consumers money on energy bills over time. The water heater stands out from other conventional or standard water heaters on the market thanks to its high energy-saving effect.
