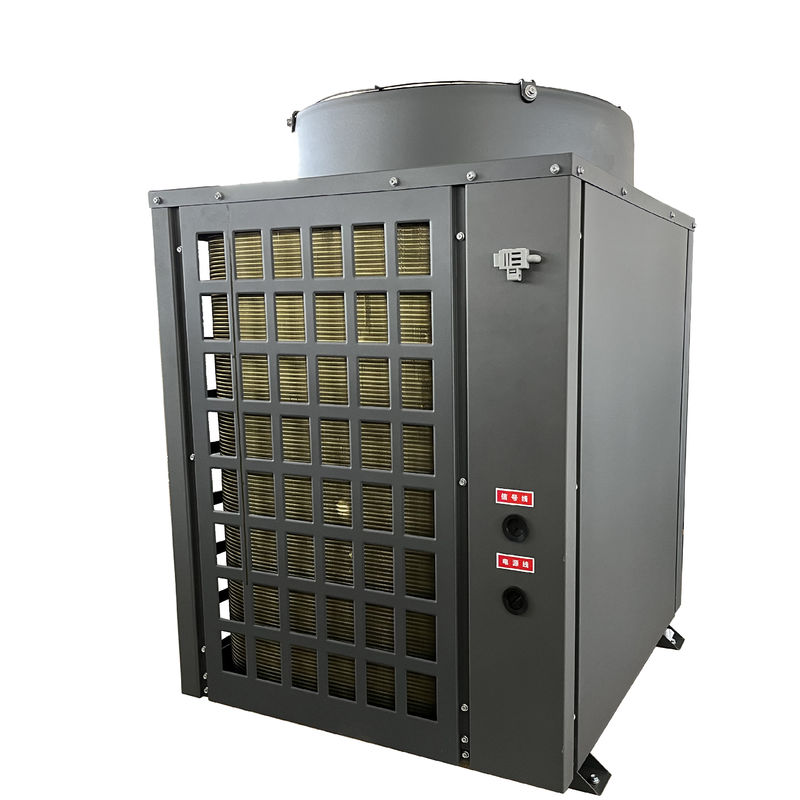

Black 22KW Heat Pump Commercial High Temperature Heat Pump IPX4

Black 22KW Heat Pump Commercial High Temperature Heat Pump IPX4

22KW Heat Pump

Commercial 22KW Heat Pump

22KW Commercial High Temperature Heat Pump

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Heating Capacity(7℃/55℃):
Rated Input Power (KW):
Water Temp. Range (℃):
Default 55, 28~60
Black, Matte Surface
Net Weight(kg):
Commercial Air Source Heat Pump
Payment & Shipping Terms
Supply Ability
5000 Unit/Units per Month
Product Description

22KW Commercial Air Source Heat Pump For Hotel Heating System


Color Black, Matte surface
Air Flow Direction Vertical
Safeties LP & HP Cutout, Current & Voltage, Overheat, Temperature, Pressure Protection
Defrosting Auto and By manual
Dimensions(L*W*H)(mm) 752*691*1000
Noise(dB) ≤57
Net Weight(kg) 155
Water connection(mm) male 25
Gross Weight(kg) 163
Packing Dimensions(L*W*H)(mm) 792*741*1151

SUNRAIN’s domestic heat pump water heater ensures a continuous supply of hot water at all times. It is equipped with a High-Efficiency Compressor to speed up the rate of heat exchange and supply more hot water as a result. When you buy this water heater, you don’t have to worry about its longevity as it is highly durable. Advanced features like Titanium Plus and Magnesium Anode protect the tank against corrosion and contribute to its long life.


Black 22KW Heat Pump Commercial High Temperature Heat Pump IPX4 0



At SUNRAIN, we provide two kinds of heat pump hot water heaters. One is used for domestic purposes and the other for commercial applications. Both the water heaters employ a unique quick heating technology that helps you to warm your home.

Black 22KW Heat Pump Commercial High Temperature Heat Pump IPX4 1



In the majority of homes, a SUNRAIN heat pump water heater can be mounted directly on your current water heater position, making it a clever and portable choice.


Black 22KW Heat Pump Commercial High Temperature Heat Pump IPX4 2

Product Parameters


Model No. (Sunrain) RS-022TA1
Power Supply 380~415V/3/50Hz
Heating Capacity (KW) 22.00
Rated Input Power (KW) 5.15
Rated Current (A) 9.21
COP requirement 4.27
Max Power Input(kW) 8.70
Max Current(A) 15.60
Water Temp. Range (℃) Default 55, 28~60
Working temp. range(℃) -15~43
Anti-electric chock class I
Waterproof grade IPX4
Water flow volume(L/h) 4500
Water Pressure Drop(kPa) 50
Compressor brand and Type Copeland/Scroll
Compressor qty. 1
Fan motor qty. 1





Sample Project



Black 22KW Heat Pump Commercial High Temperature Heat Pump IPX4 3
