Place of Origin:
CHINA
Brand Name:
SolarEast
Certification:
CE
Model Number:
YC-220TA1
Contact Us

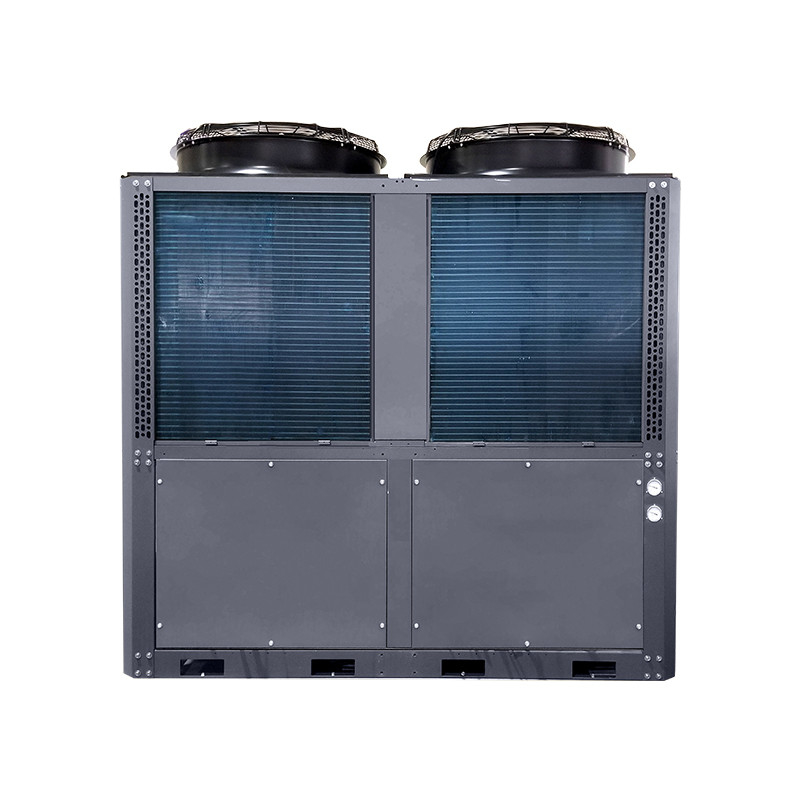

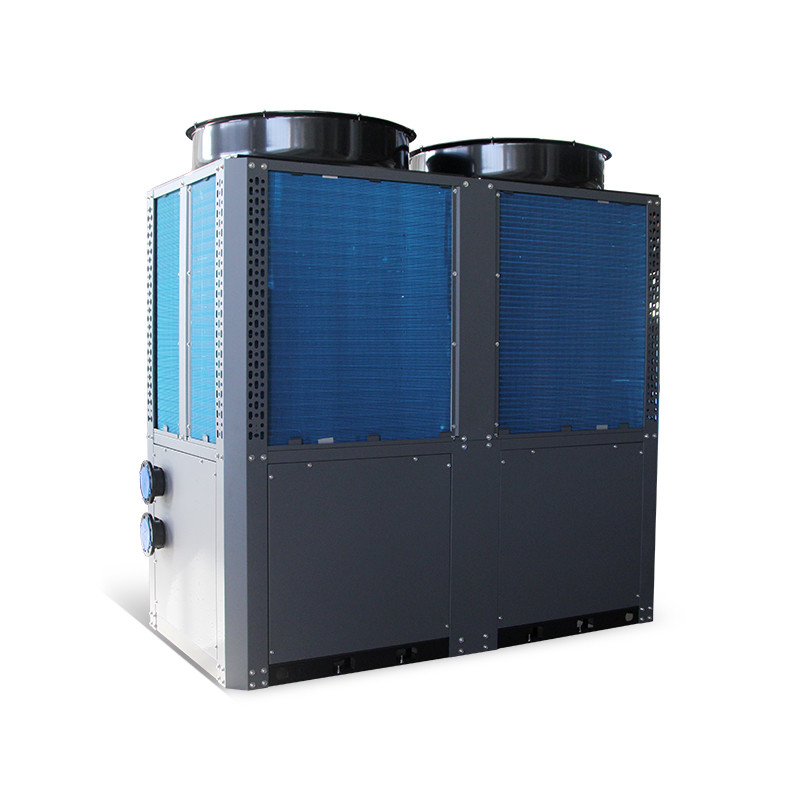

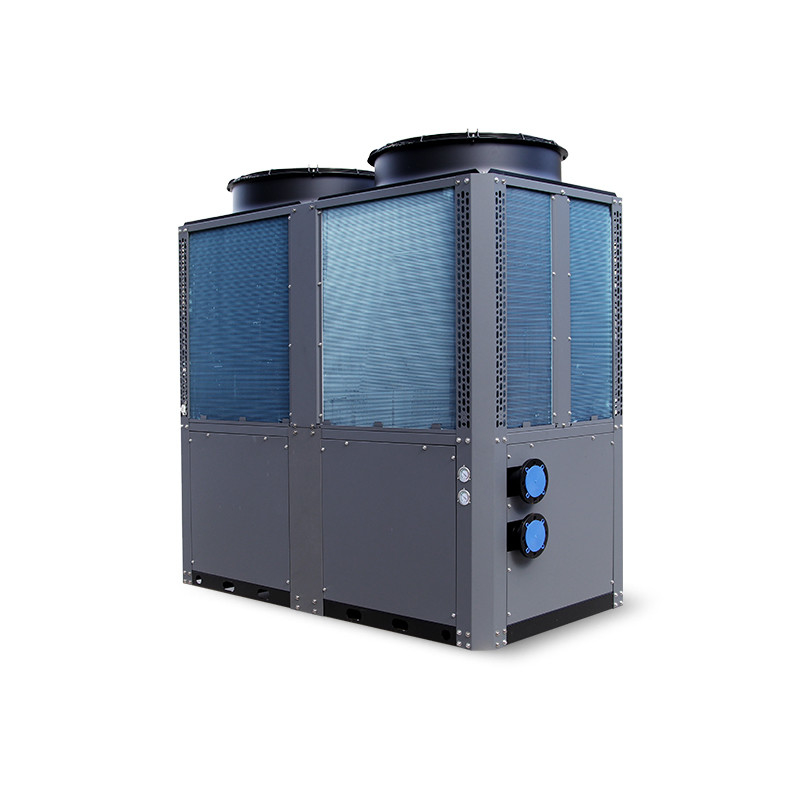

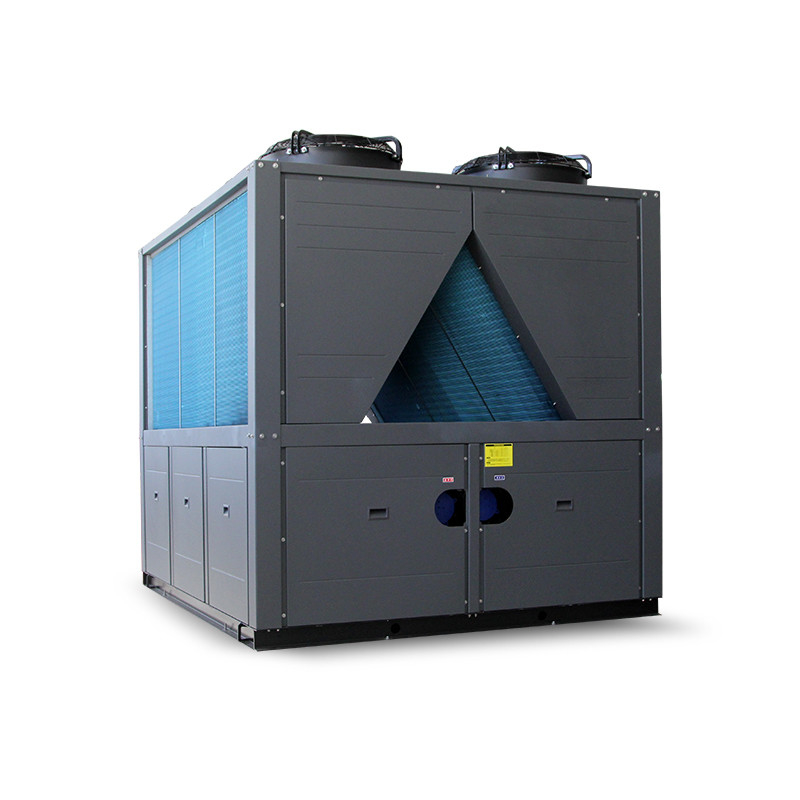

Solareast Heat Pump Ltd. offers a reliable and efficient commercial heating and cooling heat pump system.
Features
make the world cleaner
Adapt Intelligent Controller,Full Automatically Operation
Technical Data
Model | DLN-050TA1 | DLN-100TA1 | DLN-200TA1 | DLN-400TA1 | |
Power supply | V/Ph/Hz | 380-415/3/50 | |||
Heating Capacity at Air 7℃/6℃, Water 30℃ in, 35℃ out | |||||
Heating Capacity | kW | 45 | 90 | 180 | 350 |
Power Input | kW | 10.3 | 20.8 | 42 | 81.4 |
COP | 4.36 | 4.32 | 4.25 | 4.30 | |
Heating Capacity at Air 7℃/6℃, Water 50℃ in, 55℃ out | |||||
Heating Capacity | kW | 36 | 67 | 167 | 328 |
Power Input | kW | 15.5 | 25.48 | 56.7 | 113.9 |
COP | 2.32 | 2.63 | 2.95 | 2.88 | |
Heating Capacity at Air -12℃/-14℃, Water 50℃ in, 55℃ out | |||||
Heating Capacity | kW | 24 | 40 | 107 | 205 |
Power Input | kW | 15.4 | 25 | 54 | 104.6 |
COP | 1.55 | 1.60 | 1.98 | 1.96 | |
Cooling Capacity at Air 35℃/24℃, Water 12℃ in, 7℃ out | |||||
Cooling Capacity | kW | 30 | 60 | 140 | 269 |
Power Input | kW | 11.9 | 22.9 | 43.8 | 87.9 |
EER | 2.53 | 2.62 | 3.19 | 3.05 | |
Max Power Input | kW | 16.8 | 36.5 | 70.1 | 145.0 |
Max Current | A | 31.5 | 63.3 | 132.5 | 260.0 |
Compressor quantity | 1 | 2 | 2 | 4 | |
Expansion Valve | mm | Saginomiya/EEV | Saginomiya/EEV | Danfoss/EEV | Danfoss/EEV |
Air Flow Direction | Vertical | ||||
Water Flow Volume | m³/h | 8 | 16 | 32 | 60 |
Water Pressure Drop | kPa | 50 | 50 | 48 | 50 |
Dimensions(L*W*H) | mm | 1252*1076*1870 | 2198*1096*2176 | 2300*1150*2400 | 2800*2200*2450 |
Working temperature range | ℃ | -25~48 | |||
Noise | dB(A) | ≤62 | ≤67 | ≤70 | ≤76 |
IP class | IPX4 | ||||
Net Weight | kg | 450 | 800 | 1330 | 2186 |
Water connection | mm | DN 40 | DN 80 | Flange DN 80 | Flange DN 100 |
Higher Water Temperature Output Up To 55 ºC
Solareast's TA series Commercial Heating and Cooling Heat Pump delivers hot water at a maximum temperature of 55°C, ideal for commercial spaces such as hotels, hospitals, and factories. This highly efficient system ensures reliable year-round heating and cooling, providing consistent warm water for various applications. Designed for cost-effectiveness and reliability, the TA series is an excellent solution for businesses seeking efficient heating and cooling options for their commercial environments.
High Pressure Protection
Solareast's TA series commercial heat pumps incorporate high-pressure protection, ensuring safe operation within set pressure limits. This feature prevents damage or malfunctions from excessive pressure, enhancing system reliability and longevity. By mitigating the risk of breakdowns, the high-pressure protection ensures continuous, efficient performance in various commercial applications. Customers benefit from a durable, secure heat pump system, offering peace of mind and optimal operation for heating and cooling needs.
MODBUS Communication
The heat pump system integrates seamlessly with commercial building management systems via the MODBUS adapter, allowing real-time monitoring of parameters like operating modes, flow, and room temperature. This integration enables precise adjustments of the air-to-water heat pump output based on current heat demand and building specifications, ensuring optimal performance and efficiency.
Modern workshop for efficient production
Solareast Projects All Over The World
With many years of project experience, Solareast has many global strategic partners and Solareast heat pumps have gained a good reputation around the world, especially inEurope, UK, Germany, France, Poland, Netherlands, Czech Republic, Australia, Italy, Russia, Spain, Portugal, Norway, etc.
Global Certification
We have a total of 203 certifications worldwide, covering 1,129 product models. Among them, international certifications include ISO 14001, ISO9001, CB, UN38.3, IEC, MSDS, etc.; European certifications include SG, ErP, PED, LVD, CE, MCS, UKCA, etc.; Australia certifications include SAA, Solar keymark, StandardsMark, OceanaMark, etc.; Asian certifications includeCCC, CQC, CHINA GREEN PRODUCT, etc.; North American certifications include SRCC, NSF, etc.
