Place of Origin:
CHINA
Brand Name:
SUNRAIN
Certification:
CE
Model Number:
BYC-030TV3
Contact Us

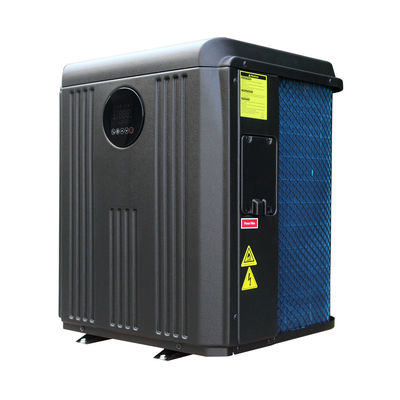

R32 Refrigerant Inverter Swimming Pool Heat Pump 30 KW Air Source Heater
| Product Features | |
| * Model | BYC-030TV3 |
| * Power supply | 380~415V/3/50Hz |
| * Rated Heating Capacity Air 26℃ ( Water 26℃ in, /28℃ out ) |
28~6.8kw |
| * Rated Heating Capacity Air 15℃ ( Water 26℃ in, /28℃ out ) |
23~5.5kw |
| * Rated Cooling Capacity Air 35℃ ( Water 29℃ in, /27℃ out ) |
14.9~3.8kw |
| * Refrigerant | R32 |
| * Working temp. range | -15℃~43℃ |
Heat pump pool heaters cost more than gas pool heaters, but they typically have much lower annual operating costs because of their higher efficiencies. With proper maintenance, heat pump pool heaters typically last longer than gas pool heaters. Therefore, you'll save more money in the long run.
Save space
With the vertical exhaust design, Inver-Top can save much installation space in your garden
Built-in WiFi Function
Control your pool heat pump via the APP on your smartphone, at Anywhere & Anytime
Product Parameters
| Model No. | BYC-030TV3 | BYC-035TV3 |
| * Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | ||
| Heating Capacity (kW) | 28~6.8 | 35~8.8 |
| Power Input (kW) | 3.97~0.43 | 5.15~0.56 |
| COP | 15.8~6.8 | 15.8~6.8 |
| * Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | ||
| Heating Capacity (kW) | 23~5.5 | 25.5~6.4 |
| Power Input (kW) | 4.7~0.72 | 5.2~0.84 |
| COP | 7.6~4.9 | 7.6~4.9 |
| * Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | ||
| Cooling Capacity (kW) | 14.9~3.8 | 19.3~4.9 |
| Power Input (kW) | 3.92~0.57 | 5.08~0.73 |
| EER | 6.7~3.8 | 6.7~3.8 |
| * General data | ||
| Power supply | 380~415V/3/50Hz | |
| Max Power Input (kW) | 4.76 | 6.93 |
| Max Current (A) | 30 | 11.3 |
| Water Flow Volume (m3/h) | 9 | 12 |
| Refrigerant | R32 | |
| Heat Exchanger | Titanium | |
| Air Flow Direction | vertical | |
| Kind of defrost | by 4 way valve | |
| Working temp. range (℃) | -15~43 | |
| Casing Material | ABS | |
