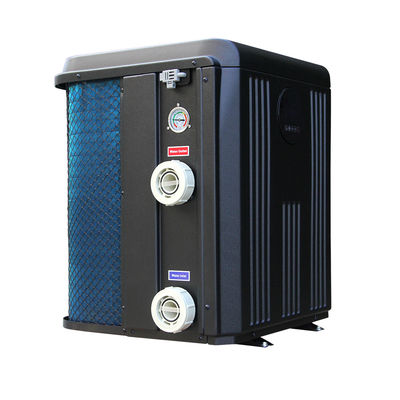

R32 Heat Pump Air To Water Swimming Pool Heat Pump 21 KW Heating System
| Product Features | |
| *Model | BYC-021TV1 |
| *Power supply | 220~240V/1/50Hz |
| *Rated Heating Capacity Air 26℃ ( Water 26℃ in, /28℃ out ) |
21~4.8kw |
| *Rated Heating Capacity Air 15℃ ( Water 26℃ in, /28℃ out ) |
16.5~3.8kw |
| *Rated Cooling Capacity Air 35℃ ( Water 29℃ in, /27℃ out ) |
11.6~2.7kw |
| *Refrigerant | R32 |
| *Working temp. range | -15℃~43℃ |
The new SUNRAIN heat pump provides economical temperature control for smaller pools that operate quietly and heat/cool to maintain the temperature setpoint with lower energy requirements than natural gas and propane heaters.
Pool owners can use the built-in digital control panel to set schedules and change settings to keep swimming comfortably, no matter the weather. And because this model is CE certified and independently tested, they can feel confident they're getting the absolute best performance, durability, and value.
Advanced heat pump technology uses less energy than natural gas and propane heaters
Provides ideal water temperatures, even in harsh weather conditions
The digital control panel displays temperature and allows for simple control of settings
Efficient MITSUBISHI ELECTRIC compressor and low-noise fan guarantee extremely quiet operation.
The durable titanium heat exchanger provides exceptional corrosion protection
Product Parameters
| Model No. | BYC-007TV1 | BYC-010TV1 | BYC-013TV1 | BYC-017TV1 | BYC-021TV1 |
| * General data | |||||
| Power supply | 220~240V/1/50 | ||||
| Max Power Input (kW) | 1.45 | 1.75 | 2.2 | 2.5 | 3.2 |
| Max Current (A) | 7.1 | 8.3 | 10.2 | 11.9 | 14.7 |
| Water Flow Volume (m3/h) | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 |
| Refrigerant | R32 | ||||
| Heat Exchanger | Titanium | ||||
| Air Flow Direction | vertical | ||||
| Kind of defrost | by 4 way valve | ||||
| Working temp. range (℃) | -15~43 | ||||
| Casing Material | ABS | ||||
| Water Proof Level | IPX4 | ||||
| Noise level 1m dB(A) | 41~51 | 42~54 | 44~55 | 45~57 | 47~58 |
| Noise level 10m dB(A) | 21~31 | 22~34 | 24~35 | 25~37 | 27~38 |
| Net Weight (kg) | 44 | 46 | 55 | 57 | 61 |
| Gross Weight (kg) | 55 | 57 | 68 | 70 | 72 |
| Net Dimensions (mm) | 530*530*640 | 650*650*770 | |||
| Package Dimensions (mm) | 560*600*780 | 680*720*910 | |||
