Place of Origin:
CHINA
Brand Name:
SolarEast
Certification:
CE
Model Number:
BYC-070TA1
Contact Us

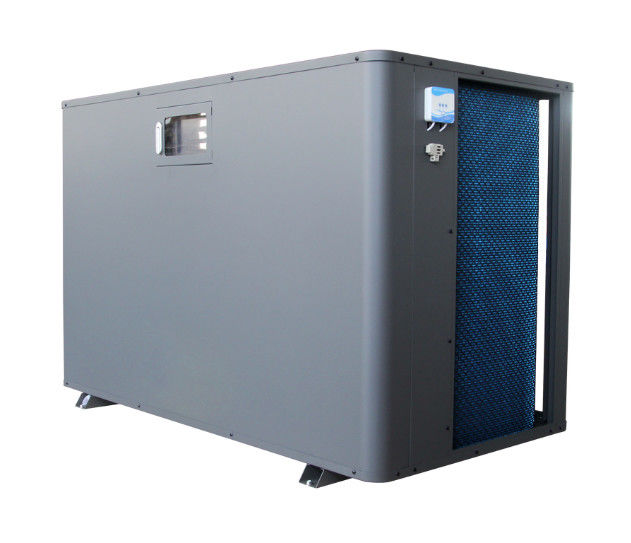

70KW Air Source Swimming Pool Air Source Heat Pump Metal Case Automatic R32 ECO
The SolarEast commercial swimming machine
is a state-of-the-art aquatic gadget
created to offer consumers in business settings an amazing swimming experience.
A smooth, continuous stream is generated by the machine's cutting-edge technology,
which enables users to swim against it
for a strenuous exercise.
Premium materials, including as marine-grade stainless steel,
which resists corrosion and has exceptional durability,
were used in the construction of this swimming apparatus.
Its small size and elegant design make it the ideal choice
for facilities with limited space,
and its adjustable current speed enables users of all skill levels to
tailor the intensity of their workouts to suit their demands.
Users may track their progress and change the current speed
and time settings to
meet their fitness objectives thanks to
the machine's user-friendly touchscreen control panel.
A locking system to prevent unauthorized usage
and an emergency stop button are among the safety elements
incorporated into the design.
| Model | BYC-070TA1 |
| Power Supply | 380~415V/3/50Hz |
| Heating Capacity at Air 26 ℃, Water 26℃, Humidity 80℃ | |
| Heating Capacity(kW) | 70~16.5 |
| Power Input(kW) | 10.03~1.02 |
| COP | 16.11~6.98 |
| Heating Capacity at Air 15 ℃, Water 26 ℃, Humidity 70 ℃ | |
| Heating Capacity(kW) | 51~12.1 |
| Power Input(kW) | 10.24~1.6 |
| COP | 7.56~4.98 |
| Cooling Capacity at Air 35℃/24℃, Water 27 ℃ | |
| Cooling Capacity(kW) | 38~9.1 |
| Power Input(kW) | 10.41~1.36 |
| EER | 6.69~3.65 |
Higher COP
Full inverter, greater performance, higher COP.
R32 refrigerant
R32 refrigerant,environmental friendly.
Titanium
Titanium heat exchanger, resistance to corrosion.
Controller
Easy to use touch-screen controller
WIFI
WIFI capability is present.
| Rated Power Input(kW) | 10.0 |
| Rated Current(A) | 18 |
| Max Power Input(kW) | 15.0 |
| Max Current(A) | 26 |
| Refrigerant | R32 |
| Compressor Type | Mitsubishi inverter |
| Heat Exchanger | Titanium |
| Expansion Valve | Electronic EEV |
| Air Flow Direction | Vertical |
| Water Flow Volume(m³/h) | 20 |
| Net Dimensions(L*W*H)(mm) | 1416*752*1055 |
| Package Dimensions(L*W*H)(mm) | 1580*880*1150 |
| Working temperature range(℃) | -15～43 |
| Hating temperature range(℃) | 15~43 |
| Cooling temperature range(℃) | 8~28 |
| Noise(dB(A)) | ≤59 |
| Net Weight(kg) | 280 |
| Gross Weight(kg) | 320 |
| Water connection(mm) | 110 |
The commercial swimming machine from SolarEast has an adjustable current speed function that enables customers to alter their swimming routine.
The device features a variable speed motor that produces a steady,
smooth current that can be varied in speed to meet the user's choice and fitness level.
The machine's touchscreen control panel allows customers to choose the desired current speed, which displays the current speed and allows users to increase or decrease it
in accordance with their demands.
Because users may gradually raise the current speed as their fitness level increases,
this function is very helpful for people
who wish to gradually increase the intensity of their swimming practice.
