R290 Air Source Hydraulic Module Heat Pump for Heating and Cooling

R290 Air Source Hydraulic Module Heat Pump for Heating and Cooling

Brand Name:

SolarEast

Contact Us

Request A Quote
Product Details
Power Supply:
220-240/1/50,380-415/1/50
IP Class:
IPX1
Sound Pressure Level:
35db
Band:
OEM
Color:
White
Way:
Air To Water
Payment & Shipping Terms
Product Description





R290 Air Source Hydraulic Module Heat Pump for Heating and Cooling





R290  Air Source Hydraulic Module Heat Pump for Heating and Cooling 0




R290  Air Source Hydraulic Module Heat Pump for Heating and Cooling 1

Model HU-3K/6LA1 HU-9K/6LA3
Power Supply 220-240/1/50 380-415/1/50
Auxiliary heater power kW 3 9
Power Input Max. kW 3.5 3.5
Current Input Max. A 15.6 16.2
Electrical Shockproof / I
IP Class / IPX1
Water Piping Connections In G1
Water Pressure Drop kPa 10
Water Pressure Min/Max Mpa 0.1/0.3
Sound Pressure level dB(A) 35
Unit Dimensions (W/H/D) mm 420×670×260
Shipping Dimensions (W/H/D) mm 480×720×310
Net Weight kg 29
Gross Weight kg 33











R290  Air Source Hydraulic Module Heat Pump for Heating and Cooling 2



Model
HUST-200LA1
HUST-200LA3
HUST-250LA1
HUST-250LA3
Power Supply 220-240/1/50 380-415/1/50
220-240/1/50
380-415/3/50
Auxiliary heater power kW 3 9 3 9
Power Input Max. kW 3.5 9.5 3.5 9.5
Current Input Max. A 15.6 16.2 15.6 16.2
Hot Water Tank Volume
L 200 200 250 250
Electrical Shockproof / I
IP Class / IPX1
Hot Water Piping Connections
In G3/4
Heating Water Piping Connections
In G1
Water Pressure Drop kPa 10
Water Pressure Min/Max Mpa 0.1/0.3
Hot Water Tank Pressure Max.
Mpa 0.8
Sound Pressure level dB(A) 35
Exchange Coil Shape
/
corrugation
Heat Exchange Coil Dimensions
mm
∅28*25000
Net Weight kg
95
120
Gross Weight kg 105 130

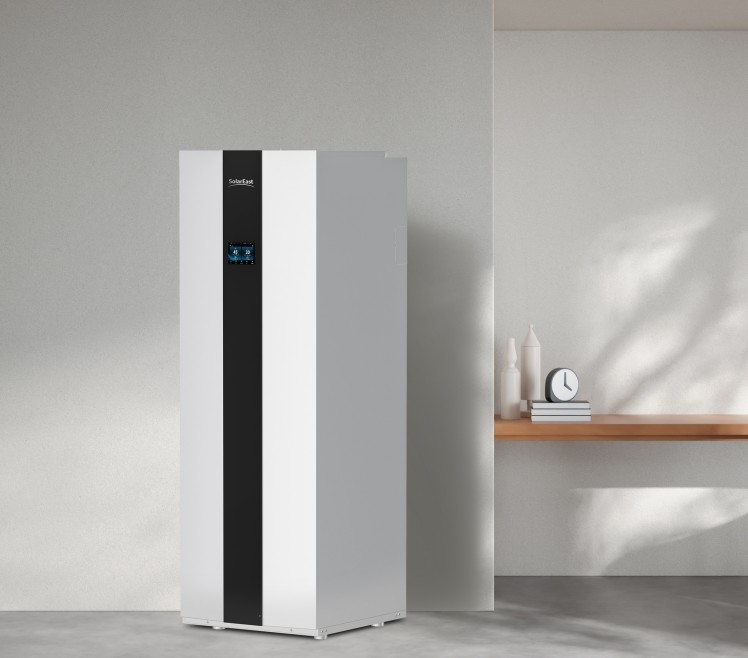

  Hydraulic Module With Water Tank



A tower with a 200/250-litre tank for everyday hot water comes with a quick-acting heat switcher connected to the outside part through coolant tubes. The unit is fitted with a heat switcher, expansion tank, tap for daily hot water, connection for a backup boiler, and safety valves. A full package that assures dependability and saves space.







R290  Air Source Hydraulic Module Heat Pump for Heating and Cooling 3



Suitable: √Small and medium-sized homes  √Apartments

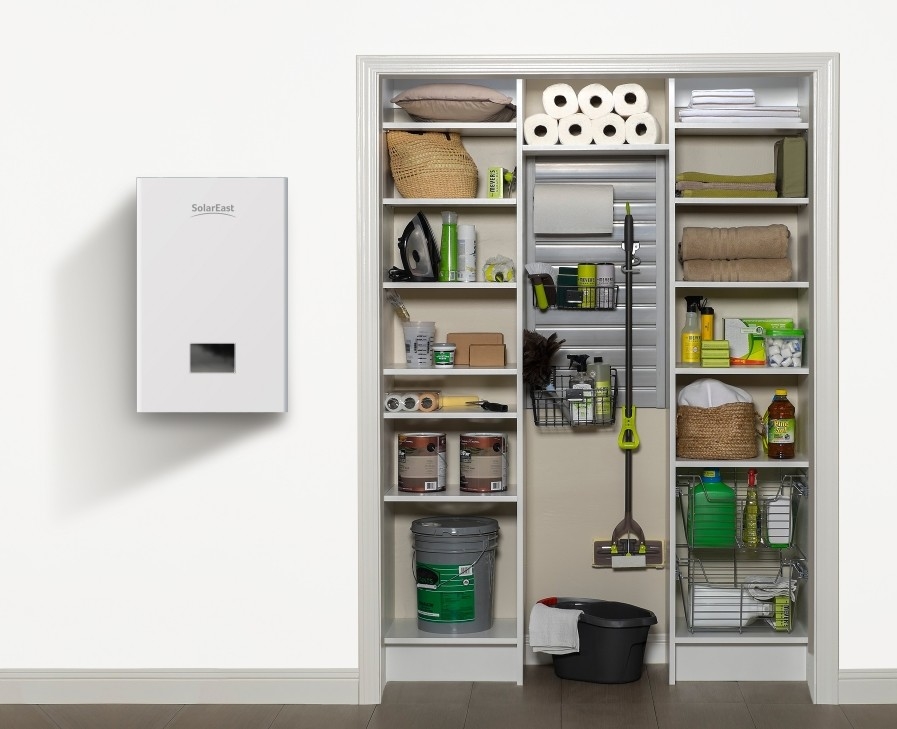

  Hydraulic Module Without Water Tank

Internal hydraulic module with circulation pump and heat exchanger connected to the outdoor unit via refrigerant pipes. A flexible solution is suitable for the implementation of tailor-made systems.


R290  Air Source Hydraulic Module Heat Pump for Heating and Cooling 4

Suitable: Offices  Centralised systems  √Medium and large-sized homes

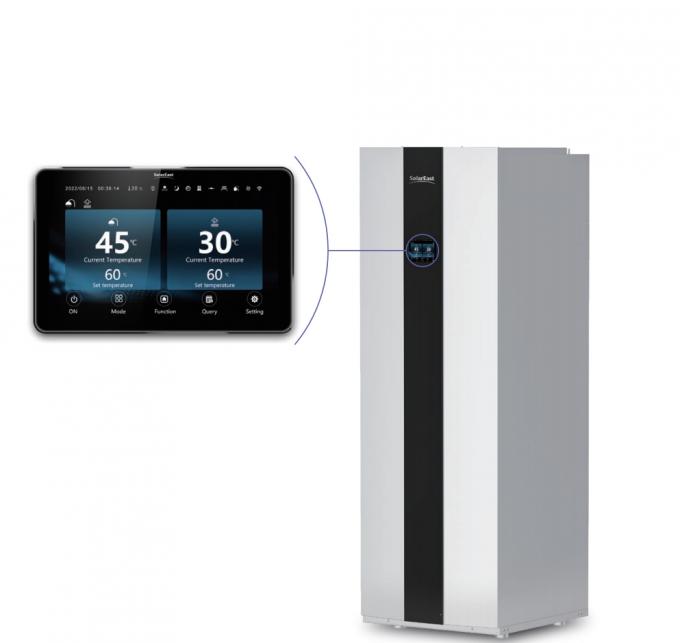

· USER-FRIENDLY CONTROL



The efficient and eco-friendly air-to-water heat pump system can be accessed via the color LED display. SolarEast has consolidated all features and configurations, including the advanced technology of the air-to-water heat pump, onto a single page to ensure ease of use. This innovative heat pump utilizes the surrounding air as a renewable energy source to generate hot water, providing exceptional energy efficiency and reducing carbon emissions. With its integration into our user-friendly interface, users can effortlessly control and optimize the performance of the air-to-water heat pump alongside other features, making it a convenient and sustainable solution for heating water.

screen-with tank











· Wi-fi Control



Wi-Fi capability is a standard feature in all models, including our cutting-edge air-to-water heat pump. This means that users can effortlessly remotely monitor and adjust the pump's operations, including the performance and settings of the air-to-water heat pump. By connecting the heat pump to their home network, users can conveniently access real-time data, receive notifications, and make necessary adjustments from anywhere using their smartphones or other connected devices. This seamless integration of Wi-Fi technology with air to water heat pump enhances convenience, control, and energy efficiency, allowing users to optimize its performance and ensure optimal comfort and sustainability in their heating system.





wifi







· Energy Savings



Solareast DC Inverter heat pumps, including the advanced air-to-water heat pump, are designed to deliver remarkable energy savings for both heating and hot water production. With their high Seasonal Coefficient of Performance (SCOP) levels, these heat pumps offer exceptional efficiency and sustainability. In comparison to traditional heating systems such as boilers, air-to-water heat pump can reduce energy consumption by 30% to 50% over a single winter, leading to substantial cost savings for users. By harnessing renewable energy from the air, the heat pump minimizes reliance on fossil fuels and significantly lowers carbon emissions, making it an environmentally-friendly choice. Whether it's for residential or commercial applications, air to water heat pump from Solareast provides an energy-efficient solution that not only helps reduce utility bills but also contributes to a greener and more sustainable future.







R290  Air Source Hydraulic Module Heat Pump for Heating and Cooling 7

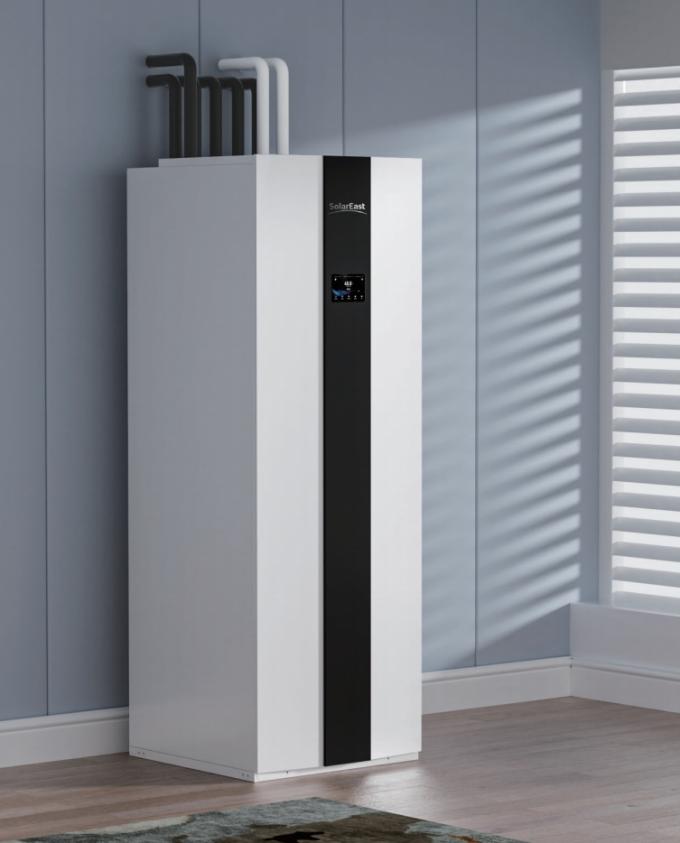

· Reduced Space Requirements



The Solareast Hydraulic Module offers even more convenience and space-saving benefits for home use when combined with the innovative air-to-water heat pump. This integrated module houses all the necessary components within its compact design, eliminating the need for separate installations and saving valuable space. What sets it apart is the inclusion of a built-in hot water tank, which is not typically found in traditional setups. This all-in-one pack provides a streamlined solution with pre-set hydronic and hot water parts, facilitating a faster and hassle-free setup process. By combining an air-to-water heat pump with the Solareast Hydraulic Module, users can enjoy a user-friendly, dependable, and highly efficient heating and hot water system. The integration of these components not only ensures optimal performance but also frees up living space, making it an ideal choice for residential applications.





01







·  Dual Temperature Zone



With the innovative air-to-water heat pump, you can experience personalized comfort at its finest, thanks to its dual temperature zone capability. This advanced feature allows you to independently adjust the temperature settings for different areas of your home, ensuring optimal comfort and energy efficiency.



In the living room, an air-to-water heat pump provides the option to set the floor heating temperature to a comfortable 35°C. This gentle warmth radiating from the floor creates a cosy and inviting atmosphere, perfect for relaxing or spending quality time with family and friends. The controlled and consistent heat distribution enhances overall comfort and ensures a pleasant living environment.



Meanwhile, the room heater temperature can be set to a warm and toasty 55°C. This higher temperature is ideal for spaces where you need quick and direct heat, such as bedrooms or study areas. Whether it's a chilly winter morning or a cold evening, the 'air to water heat pump' allows you to enjoy a warm and inviting atmosphere that suits your preferences.





R290  Air Source Hydraulic Module Heat Pump for Heating and Cooling 9







·  Ultra Quiet Operating Mode



By incorporating the advanced technology of air-to-water heat pump, we offer the ability to adjust the power of the compressor and fan, allowing for noise reduction during specific periods when quiet operation is desired, such as at night. With this feature, the 'air to water heat pump' can cut down the noise level by half, ensuring a peaceful and comfortable environment for users. This intelligent control over the pump's performance not only enhances comfort but also optimizes energy usage. By operating at lower noise levels during designated times, air to water heat pump ensures the quietest performance possible while maintaining efficient heating and hot water production. This thoughtful design consideration prioritizes user comfort and convenience, making the 'air to water heat pump' an ideal choice for those seeking a harmonious balance between performance, energy efficiency, and quiet operation.





安静图标







· Exclusive Design To Work In The Most Extreme Condition



The versatile air-to-water heat pump is engineered to operate effectively across a wide range of outdoor temperatures, including extreme conditions. With its robust design, this equipment can reliably function in temperatures as low as -25°C and as high as 45°C. Whether you're facing freezing winters or scorching summers, the 'air to water heat pump' remains efficient and dependable, providing consistent heating and hot water production throughout the year. This exceptional temperature range capability ensures that users can rely on the air-to-water heat pump to meet their heating needs regardless of the climate or weather conditions. Whether it's battling cold or enduring sweltering heat, the air-to-water heat pump is designed to withstand and perform optimally in a broad spectrum of outdoor temperatures, delivering comfort and reliability in any environment.





R290  Air Source Hydraulic Module Heat Pump for Heating and Cooling 11







· Proven Quality



Solareast offers heat pump solutions that can seamlessly integrate into the future smart energy grids, contributing to the availability of affordable heating systems necessary for achieving carbon reduction targets. These heat pumps are designed to meet the rigorous standards set by prestigious quality accreditation schemes like MCS, Keymark, CE(Conformité Européenne), ErP(Energy-Related Products), BAFA, and SG Ready, which are essential for qualifying for state subsidies in Europe.









certificates









· Efficient IoT Solution



Solareast takes customer management to the next level with its efficient IoT platform, specifically designed to enhance the performance of air-to-water heat pump and streamline operations for dealers. This innovative platform empowers dealers to reduce labour costs significantly while delivering exceptional customer service. By leveraging the platform's capabilities, dealers can remotely monitor the operating parameters of air-to-water heat pump, ensuring optimal performance and identifying any potential issues in real-time.

The IoT customer management platform also offers seamless data recording and synchronization features, enabling dealers to effortlessly integrate the management systems of both dealers and manufacturers. This integration facilitates efficient communication and collaboration, ensuring a smooth flow of information and streamlined processes.





Iot
