Name: Hydraulic Module with Water Tank for Maximum Efficiency
Brand: SolarEast
SKU: HUST-200LA1
Rating: 4.5 (106 reviews)

Home > products > Hydraulic Module Heat Pump >

Hydraulic Module with Water Tank for Maximum Efficiency

Brand Name:

SolarEast

Model Number:

HUST-200LA1

Request A Quote

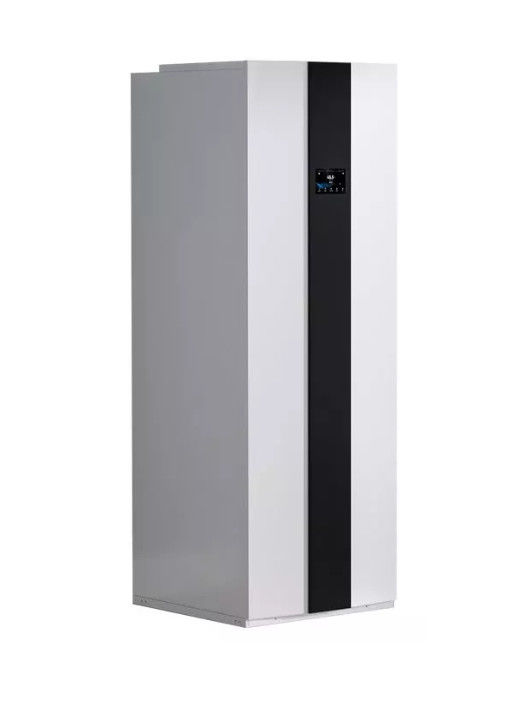

Hydraulic Module with Water Tank for Maximum Efficiency

Product Details

Power Supply:

220-240/1/50

IP Class:

IPX1

Sound Pressure Level:

35dB(A)

Exchange Coil Shape:

Corrugation

Water Pressure Min/Max:

0.1/0.3

Payment & Shipping Terms

R290 R32 Air Source Hydraulic Module Heat Pump for Efficient Year-Round Heating And Cooling

Get Best Price

SG Ready High-Efficiency Hydraulic Module No Water Tank Needed

Get Best Price

Hydraulic Module Solution Without Integrated Water Tank

Get Best Price

Hydraulic Module with Water Tank for Maximum Efficiency

Get Best Price

86-137-2786-4674

heatpump@solareast.com

Contact Now

Product Description

Product Parameters

Model		HUST-200LA1	HUST-200LA3	HUST-250LA1	HUST-250LA3
Power Supply		220-240/1/50	380-415/1/50	220-240/1/50	380-415/3/50
Auxiliary heater power	kW	3	9	3	9
Power Input Max.	kW	3.5	9.5	3.5	9.5
Current Input Max.	A	15.6	16.2	15.6	16.2
Hot Water Tank Volume	L	200	200	250	250
Electrical Shockproof	/	I
IP Class	/	IPX1
Hot Water Piping Connections	In	G3/4
Heating Water Piping Connections	In	G1
Water Pressure Drop	kPa	10
Water Pressure Min/Max	Mpa	0.1/0.3
Hot Water Tank Pressure Max.	Mpa	0.8
Sound Pressure level	dB(A)	35
Exchange Coil Shape	/	corrugation
Heat Exchange Coil Dimensions	mm	∅28*25000
Net Weight	kg	95		120
Gross Weight	kg	105		130

Energy Savings

Solareast's DC Inverter heat pumps deliver impressive energy efficiency for both heating and hot water generation, featuring elevated Seasonal Coefficient of Performance (SCOP) ratings. When compared to conventional heating systems such as boilers, users can experience energy consumption reductions ranging from 30% to 50% during the winter months, leading to substantial cost savings and a lower environmental impact.

energy saving 图标

Reduced Space Requirments

The Solareast HYDRAULIC MODULE is designed to maximize space efficiency while providing exceptional convenience for residential applications. Its integrated construction consolidates all components within a single internal module, including a built-in hot water tank, eliminating the need for separate installations. This compact all-in-one solution comes pre-configured with hydronic and hot water components, facilitating quick installation and optimizing living space. Its user-friendly design ensures reliability and high efficiency, making it an ideal choice for modern homes.

White_Utility_Closet_Feb_20142

Extreme Temperature Performance

This advanced equipment is engineered to operate effectively across a wide range of outdoor temperatures, enduring extremes from -25°C to 45°C. Its robust design ensures reliable performance even in harsh conditions, making it suitable for diverse environments. Users can depend on this equipment for consistent operation, regardless of weather challenges.

极寒天气

Advanced Laboratory

Solareast has invested $3 million in a cutting-edge laboratory that can replicate extreme environmental conditions from -30°C to 52°C. Certified by TUV and Intertek, this facility allows for thorough performance testing. Recent upgrades, including specialized areas for water drawdown and explosion-proof testing, further emphasize our dedication to product quality and safety.

Hydraulic Module with Water Tank for Maximum Efficiency 3

Solareast Overseas Product Showroom

To broaden our global presence, Solareast has launched a 1,200-square-meter showroom abroad, showcasing dedicated sections for heat pumps, water tanks, solar solutions, and other innovative energy products. This showroom attracted significant interest during the Canton Fair, offering clients an extensive overview of Solareast’s advanced technologies and environmentally friendly solutions.

Hydraulic Module with Water Tank for Maximum Efficiency 4
