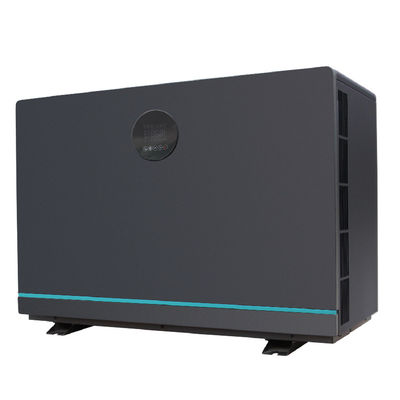

21KW Inver Swimming Pool Heat Pump 15COP Air To Water Heat Pump
| Heating Performance | 20.5~4.8 |
| COEFFICIENT OF PERFORMANCE (C.O.P.) | 15~6.7 |
| Electronic Temperature Control | Yes |
| KW Max Input | 3.1 |
| Refrigerant | R32 ECO |
| Net Weight (kg) | 68 |
SUNRAIN air to water heat pumps, absorb heat from the outside air and then provide hot water heating, radiators, or indoor floor heating (or all three) through a central heating system.
There are many benefits to using a heat pump. Using an air source heat pump saves money on energy costs and reduces your carbon footprint compared to gas or electric heating systems. One of the key benefits of air-source heat pumps is their programmability
Air source heat pumps are a form of low carbon heating because they use outside air to heat or cool your home. If you are switching from a lump of coal to an electric-based heating system, you can significantly reduce your carbon footprint.
Product Parameters
| Model No. | BYC-021TH1 |
| * Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | |
| Heating Capacity (kW) | 20.5~4.8 |
| Power Input (kW) | 3.06~0.32 |
| COP | 15~6.7 |
| * Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | |
| Heating Capacity (kW) | 15.0~3.5 |
| Power Input (kW) | 3.06~0.47 |
| COP | 7.5~4.9 |
| * Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | |
| Cooling Capacity (kW) | 10.2~2.8 |
| Power Input (kW) | 2.76~0.42 |
| EER | 6.6~3.7 |
| * General data | |
| Power supply | 220~240V/1/50 |
| Max Power Input (kW) | 3.1 |
| Max Current (A) | 14.7 |
| Water Flow Volume (m3/h) | 6.5 |
| Refrigerant | R32 |
| Heat Exchanger | Titanium |
| Air Flow Direction | Horizontal |
| Kind of defrost | by 4 way valve |
| Working temp. range (℃) | -15~43 |
| Casing Material | Aluminum alloy & Metal |
| Water Proof Level | IPX4 |
| Noise level 1m dB(A) | 41~52 |
| Noise level 10m dB(A) | 21~32 |
| Net Weight (kg) | 68 |
| Gross Weight (kg) | 78 |
| Net Dimensions (mm) | 1050*420*690 |
| Package Dimensions (mm) | 1110*470*810 |
