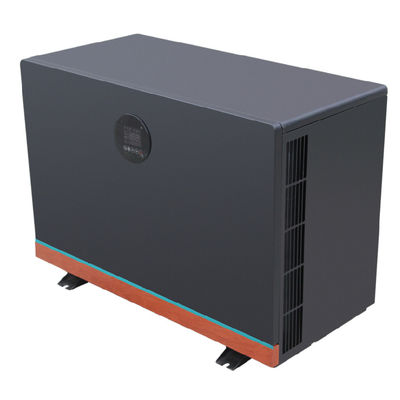

13KW Black Swimming Pool Heat Pump High COP Pool Heat Pump Boiler
Net Weight (kg) | 55 |
Voltage | 220V/1/50Hz |
COP | 14.5~6.8 |
Cooling Capacity | 6.5~1.8 |
Heat Pump Model | BYC-013TH1 |
SUNRAIN Air source heat pumps are a low-carbon heating method. They absorb heat from the cooler areas and use it to raise the indoor temperature.
SUNRAIN Air source heat pumps look similar to air conditioning units. Their size depends on how much heat they need to produce for your home - the more heat, the bigger the heat pump.
SUNRAIN air-source heat pump system can help reduce your carbon footprint because it uses a renewable, natural source of hot air.
Product Parameters
Model No. | BYC-013TH1 |
* Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | |
Heating Capacity (kW) | 12.5~3.0 |
Power Input (kW) | 1.84~0.21 |
COP | 14.5~6.8 |
* Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | |
Heating Capacity (kW) | 9.3~2.2 |
Power Input (kW) | 1.86~0.29 |
COP | 7.5~5.0 |
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | |
Cooling Capacity (kW) | 6.5~1.8 |
Power Input (kW) | 1.76~0.27 |
EER | 6.6~3.7 |
* General data | |
Power supply | 220~240V/1/50 |
Max Power Input (kW) | 2.1 |
Max Current (A) | 10 |
Water Flow Volume (m3/h) | 4.5 |
Refrigerant | R32 |
Heat Exchanger | Titanium |
Air Flow Direction | Horizontal |
Kind of defrost | by 4 way valve |
Working temp. range (℃) | -15~43 |
Casing Material | Aluminum alloy & Metal |
Water Proof Level | IPX4 |
Noise level 1m dB(A) | 40~49 |
Noise level 10m dB(A) | 20~29 |
Net Weight (kg) | 55 |
Gross Weight (kg) | 65 |
Net Dimensions (mm) | 870*420*640 |
Package Dimensions (mm) | 930*470*760 |
