200L 250L Solareast R290 Hydraulic Module Heat Pump With Water Tank

200L 250L Solareast R290 Hydraulic Module Heat Pump With Water Tank

R290 Hydraulic Module Heat Pump

200L Solareast Hydraulic Module Heat Pump

Brand Name:


Contact Us

Request A Quote
Product Details
Power Supply:
IP Class:
Sound Pressure Level:
Payment & Shipping Terms
Product Description
Model HU-3K/6LA1 HU-9K/6LA3
Power Supply 220-240/1/50 380-415/1/50
Auxiliary heater power kW 3 9
Power Input Max. kW 3.5 3.5
Current Input Max. A 15.6 16.2
Electrical Shockproof / I
IP Class / IPX1
Water Piping Connections In G1
Water Pressure Drop kPa 10
Water Pressure Min/Max Mpa 0.1/0.3
Sound Pressure level dB(A) 35
Unit Dimensions (W/H/D) mm 420×670×260
Shipping Dimensions (W/H/D) mm 480×720×310
Net Weight kg 29
Gross Weight kg 33

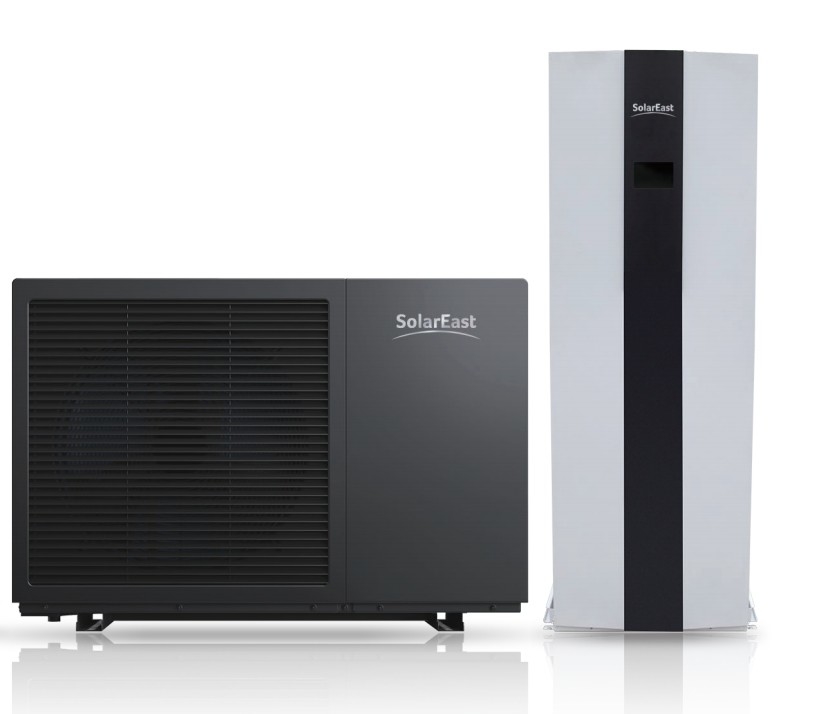

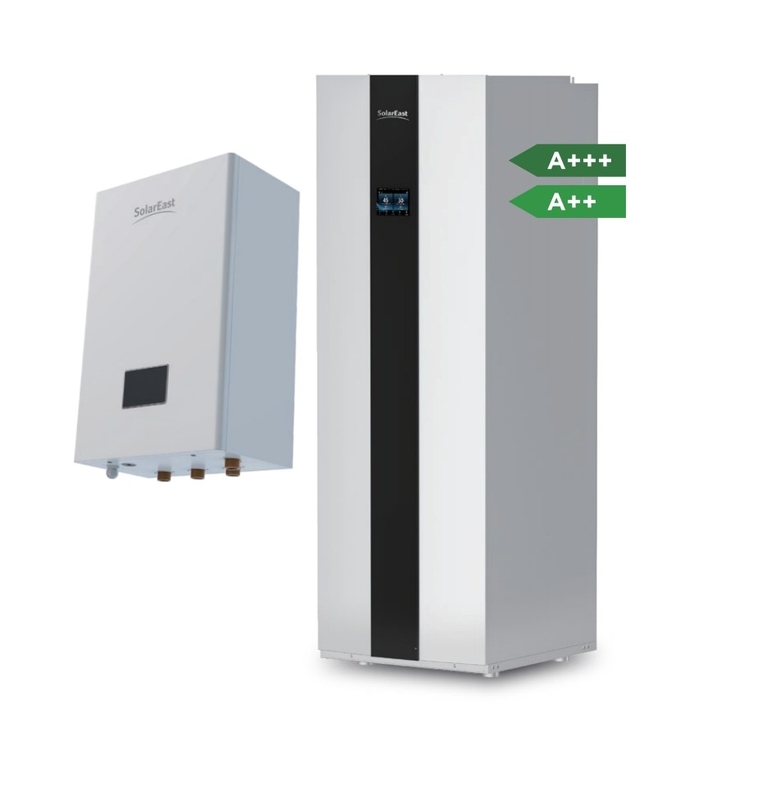

The Solareast R290 air source heat pump, when paired with the internal hydraulic module, offers enhanced flexibility and efficiency. The heat pump utilizes propane (R290) as the refrigerant, ensuring not only eco-friendliness but also outstanding energy efficiency. With its advanced technology, it achieves substantial energy savings, making it a cost-effective option for residential and commercial applications. The internal hydraulic module, which includes a circulation pump and heat exchanger connected to the outdoor unit through refrigerant pipes, allows for customizable system implementations. This flexible solution caters to the specific needs of users, enabling tailor-made heating and cooling systems with optimal performance.




逗号Hydraulic Module With Water Tank

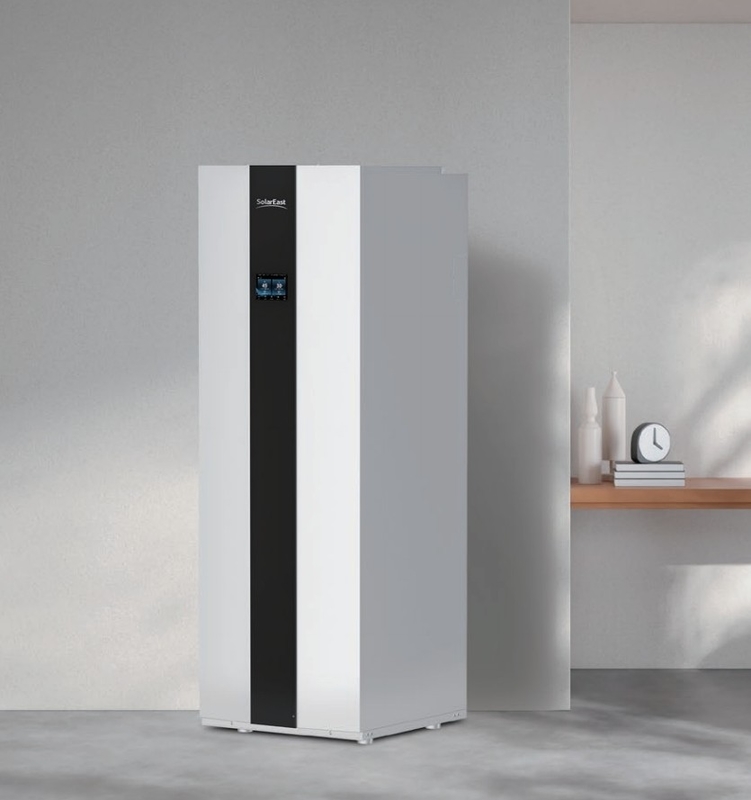

A tower with a 200/250-litre tank for everyday hot water comes with a quick-acting heat switcher connected to the outside part through coolant tubes. The unit is fitted with a heat switcher, expansion tank, tap for daily hot water, connection for a backup boiler, and safety valves. A full package that assures dependability and saves space.



200L 250L Solareast R290 Hydraulic Module Heat Pump With Water Tank 2



逗号User-friendly Control

All options can be accessed via the color LED display. We have consolidated all features and configurations onto a single page to ensure ease of use.


screen-with tank



逗号 Wi-fi Control


Wi-Fi capability is included as a standard feature in all models, enabling effortless remote monitoring and adjustment of the pump's operations.





逗号Energy Savings

Solareast DC Inverter heat pumps provide significant energy savings for heating and hot water production, thanks to their high SCOP levels. Compared to traditional heating systems like boilers, the energy consumption over a single winter can be reduced by 30% to 50%, resulting in considerable cost savings.


energy saving 图标



逗号Reduced Space Requirments

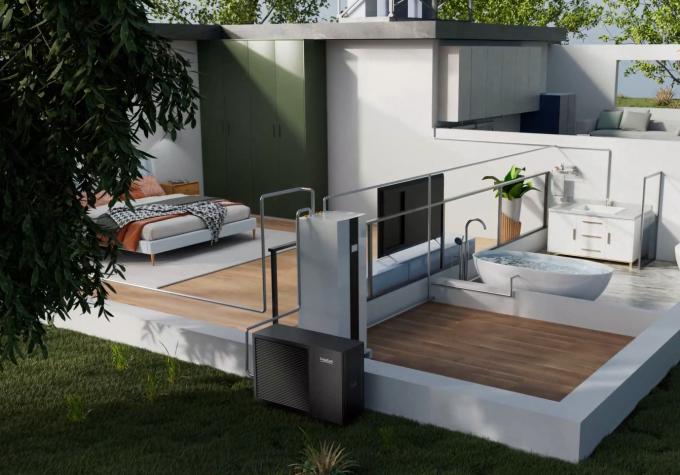

The Solareast HYDRAULIC MODULE saves space and offers convenience for home use since all of its parts are integrated within the internal module. It also comes with a hot water tank, which is built in, unlike usual separate installations. This all-in-one pack comes pre-set with hydronic parts and hot water parts, enabling faster setup and freeing up living space. It is user-friendly, dependable, and highly efficient.





逗号 Ultra Quiet Operating Mode

By adjusting the power of the compressor and fan, we can reduce the noise at night or other times when it needs to be extra quiet, which can cut down the noise by half. This gives you the most comfort, with the least usage and quietest performance.




逗号Exclusive Design To Work In The Most Extreme Condition


This equipment can function in a broad range of outdoor temperatures: even in extreme conditions from -25°C to 45°C.


200L 250L Solareast R290 Hydraulic Module Heat Pump With Water Tank 14



逗号Proven Quality


Solareast offers heat pump solutions that can seamlessly integrate into the future smart energy grids, contributing to the availability of affordable heating systems necessary for achieving carbon reduction targets. These heat pumps are designed to meet the rigorous standards set by prestigious quality accreditation schemes like MCS,Keymark,CE(Conformité Européenne),ErP(Energy-Related Products),BAFA,SG Ready,which are essential for qualifying for state subsidies in Europe.










逗号Efficient IoT Solution

Solareast offers an efficient IoT customer management platform that can help dealers significantly reduce labor costs. The platform enables remote monitoring of operating parameters, data recording, and synchronization with management systems of both dealers and manufacturers. Additionally, the platform generates error reports, allowing dealers to provide prompt solutions to users.
